Fabric: K700 - 0 (polyester powder coated)

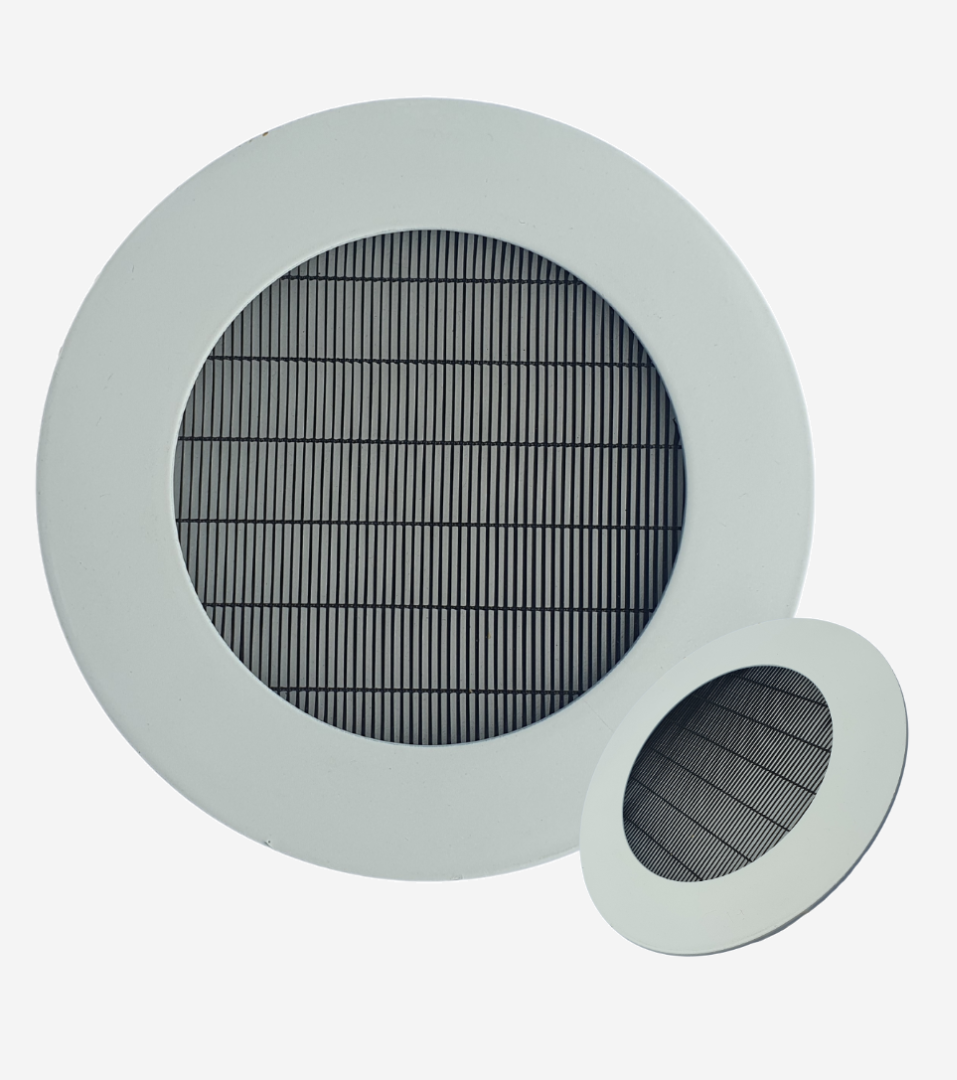

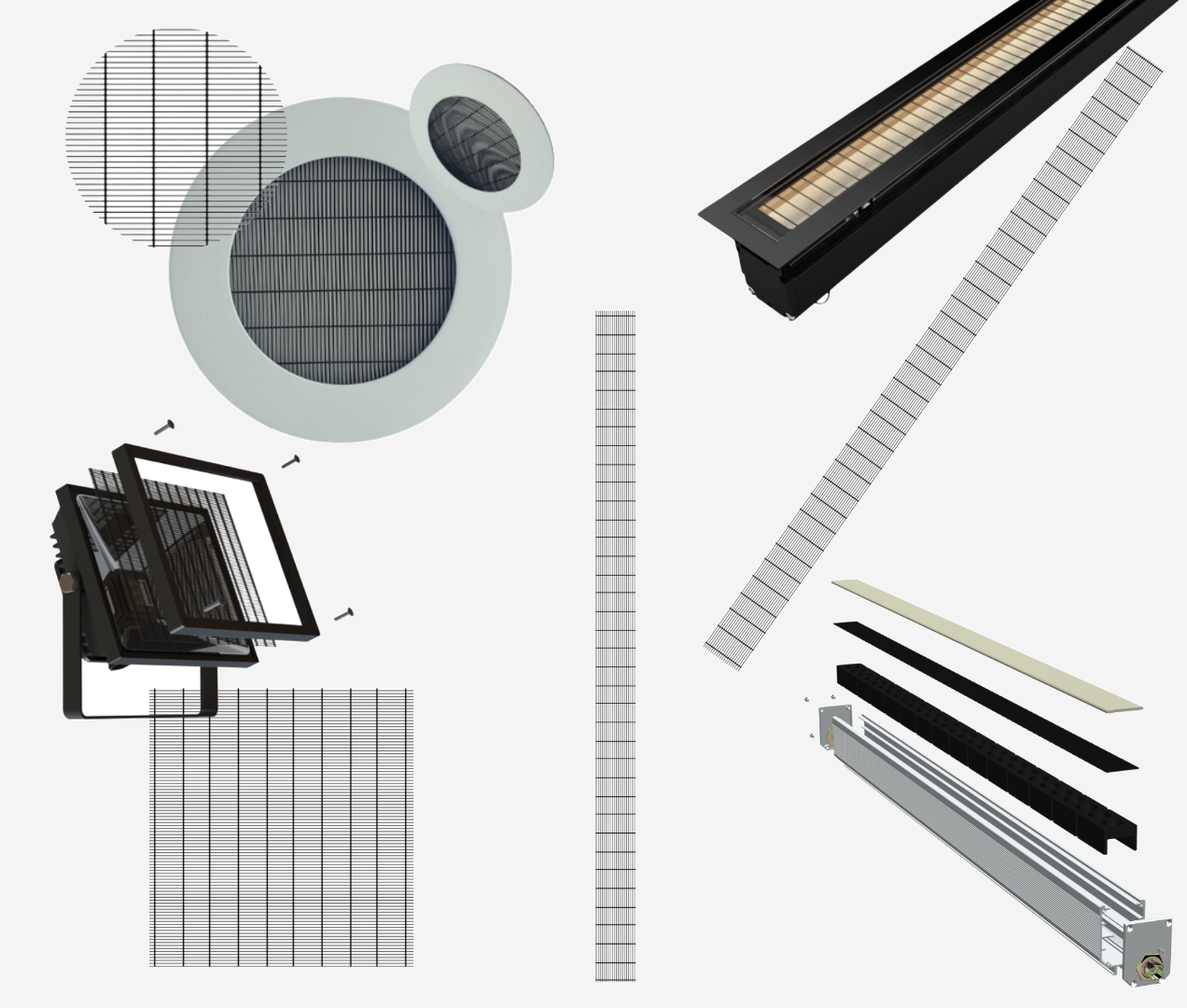

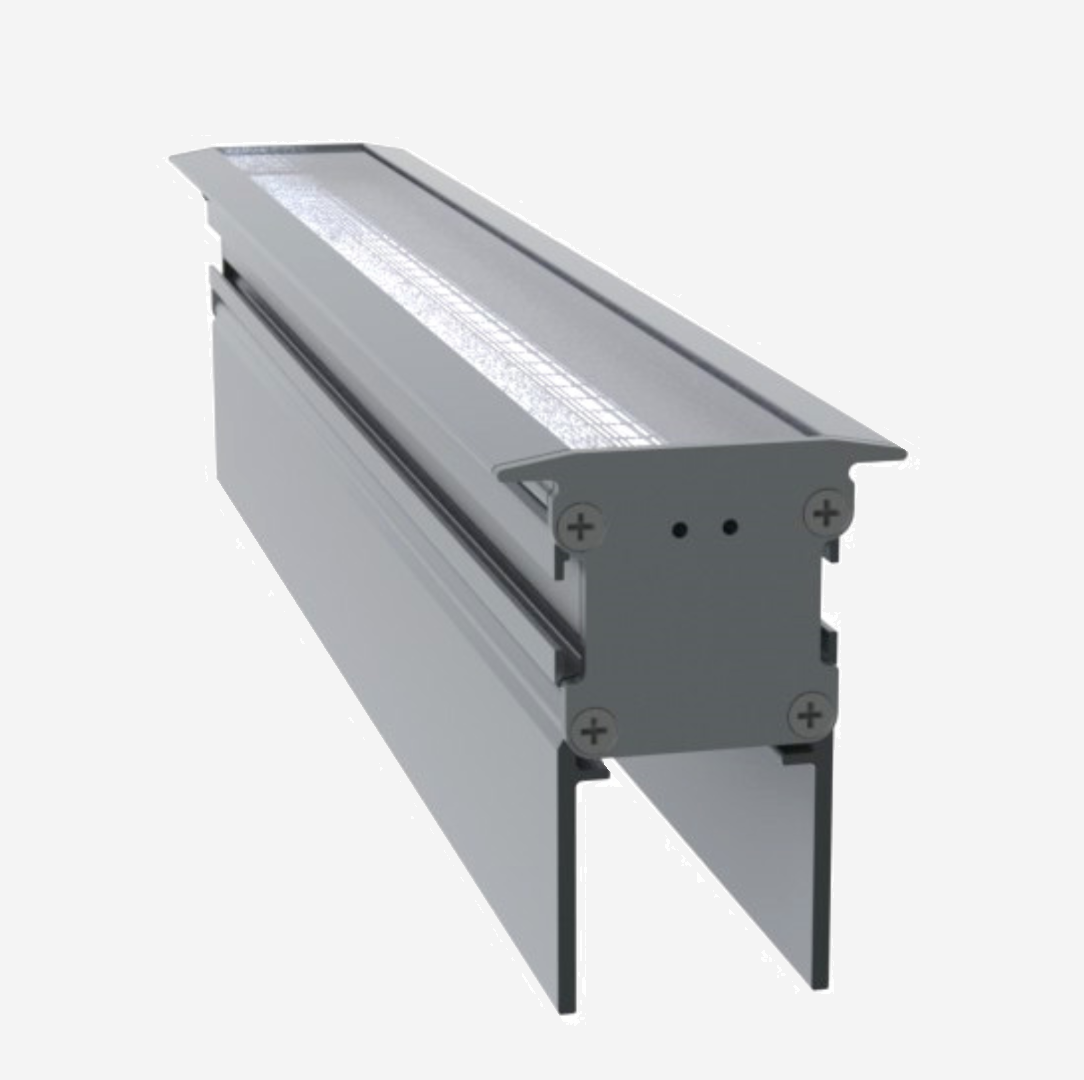

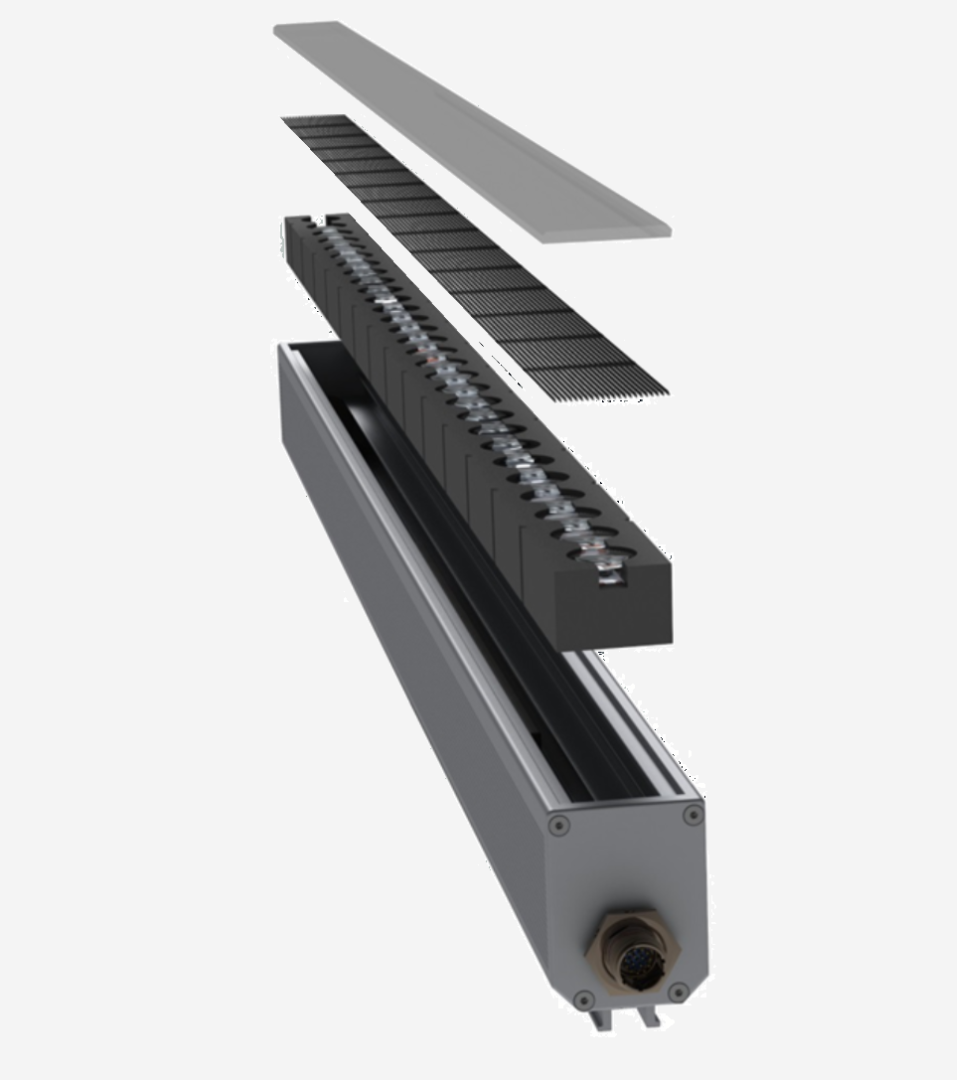

Application: Lighting
Performance & Physical Characteristics
Performance
Open Area - 80%
Colour Rendering Index (CRI) - 100%

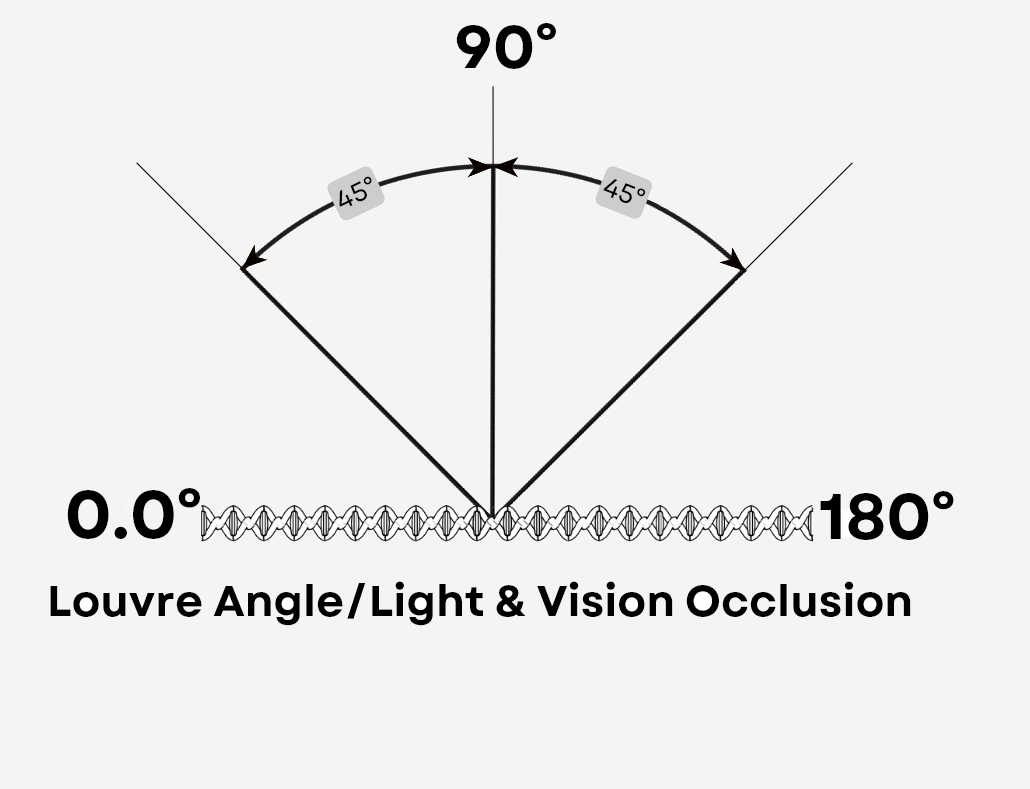

Eclipse Angle - 0° to 45° & 135° to 180° from horizontal
Louvre Angle - 90° from horizontal when horizontally mounted
Visual Block - 100% @ 0° to 50° & 130° to 180° from horizontal
Lumen Output Differential - Black Finish 25% nom. White Finish 35% nom.
Resistance to Wind - Hurricane Proof: 100 mph (160kph) (BRE) (K700 / 17 tested as maximum)
Wind Load: <14.65 kgf / sq mtr (<3lb per sq ft) (ASHRAE) (K700 / 17 tested as maximum)
Insect penetration - Exclusion of any body > 1.17 mm
Lifetime 40+ years
Physical Characteristics
Coated Fabric (MN204E - PPC)
Weft -
(each louvre)
Width - 1.30mm +0.0/-0.1mm (0.054 +0.0”/ -0.004”)
Thickness - 0.35mm +0.025/-0.0mm (0.014” +0.001”/-0.0”)
Louvre spacing - 1.41mm - 1.49mm (0.056” - 0.059”)
Louvre count - 17min – 18max per 25.4mm (1”)
Louvre angle - 0° (degrees) from normal plane when vertical
Warp -
(each wire)
Diameter - 0.310mm (0.0122”) max
Spacing (nominal) - 12.7mm (0.5”)
Fabric thickness O/A - 1.55mm ±0.1mm (0.061” ±0.004”)
Weight
(nominal)
per Square Metre - 1.1 kg (2.43 lb)
per Square Foot - 0.102 kg (0.23 lb)
